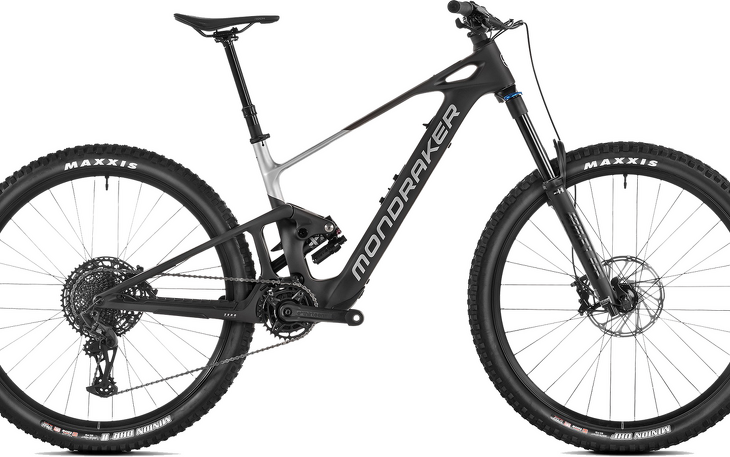

Eine neue Ära von e-Bikes hat begonnen. Das neue NEAT ist ein Mondraker Bike per Definition. Zu Hause in einer neuen Kategorie die förmlich danach schreit ihr den Mondraker Stempel aufzudrücken.
| Motorhersteller | TQ |
| Motor-Typ | TQ HPR-50 |
| Display | TQ HPR display V01 |
| Akku | 360 Wh |
| Akku-Typ | TQ HPR-50 360Wh integrated and removable |
| Range Extender kompatibel | Ja |
| Range Extender | TQ HPR Range Extender 160 (optional erhältlich) |
| Schaltwerk | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Kassette | Sram PG-1230, 11-50T, 12s |
| Schalthebel | Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
| Schaltauge | Sram UDH |
| Vorderradbremse | Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Hinterradbremse | Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Bremshebel | Sram G2 R, tool-free reach adjust, lever pivot bushings |
| Vorbau | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Steuersatz | Acros custom for 1-1/2" head tube, angular contact bearings40x52x7, Internal cable routing |
| Lenker | Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Griffe | Onoff Desert, 1lock-on, 135mm |
| Sattelstütze | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Sattel | Fizik Terra Aidon Slim X5 |
| Rahmen | Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblo |
| Rahmenmaterial | Carbon |
| Rahmengroesse | 49 |
| Laufradgröße | 29" |
| Gabel | Fox 36 29 Float GRIP EVOL Performance, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Rahmentyp | Diamant |
| Federweg vorne | 160mm |
| Hinterbaudämpfer | Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Dämpfer Hardware | Medium compression, medium rebound, air volume spacer 0.4 |
| Tretkurbel | E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm |
| Kette | Sram NX Eagle, 12s, Powerlock |
| Felgen | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Vorderradnabe | Mavic, Boost 15x110mm, IS 6 bolts |
| Hinterradnabe | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
| Kettenblätter | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Vorderreifen | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Hinterreifen | Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Speichen | Mavic J-bend double butted, contactless lacing |
| Pedale | ohne |
| Modelljahr | 2024 |
| Farbe | Schwarz |
| Gewicht | 18,9 kg |
| EBikeKategorie | E-Mountainbikes |
| Geschlecht | Unisex |
